Seeing things

4944

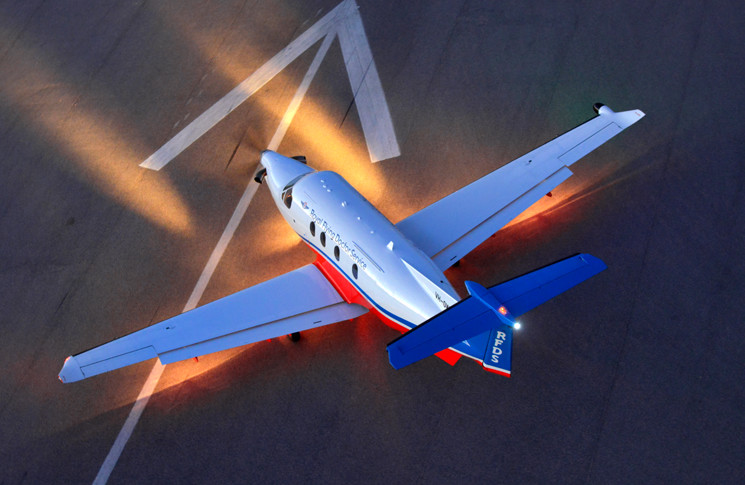

image: © Pilatus Aircraft Ltd | Royal Flying Doctors Service

An incident on an aircraft equipped with a synthetic vision system raises unsettling questions about technology, insidious failure and tunnel vision.

Half past one, on a June morning at Meekatharra airport. Dead of night and just about the coldest hour of the entire year in this sun-baked inland West Australian town, but at least the moon is shining. A Pilatus PC-12 of the Royal Flying Doctor Service is undergoing pre take-off checks for a retrieval flight to Paraburdoo. Among the single engine turboprop’s advanced features is synthetic vision. A synthetic vision system is an aircraft cockpit display that presents the environment around the aircraft using computer-generated imagery recreated from its navigation database to create a picture of terrain on the primary flight display. It uses GPS to paint the terrain on the attitude indicator.

The aircraft has been hangared and its GPS units have to reacquire the satellites overhead in the clear sky. The pilot pauses the aircraft before the threshold to let this happen. GPS 1 locates all its satellites as required, but GPS 2 fails to initialise and shows a caution message UNABLE FMS-GPS MON, on its display. The pilot flying reaches for the quick reference handbook and in it finds a fix for the problem. The caution message clears and the aircraft lifts off about 0145 local time with both systems operational.

About 18 seconds later, it gets weird. As the aircraft is climbing through about 250 feet AGL at an airspeed of about 110 knots, the radio altimeter (radalt) winds down to zero. The radalt low altitude awareness display rises to meet the altitude readout.

image: © Pilatus Aircraft Ltd | PC-12 Glass cockpit

The synthetic vision image on both pilots’ primary flight displays (PFDs) shows they are sideslipping while sinking to the ground. The runway is darting left and off the screen, as the ground representation is rising rapidly up to meet the zero pitch reference line.

The pilot flying pulls back on the control column; flight data retrieved later shows
the flight path indicator moved up to about 15 degrees. But there are no warnings sounding or cautions lighting. The stick shaker does not activate because the aircraft is nowhere near the angle of attack it would be at the PC-12’s quite impressive stall speed of 67 knots. Most strangely, there is no word from the terrain awareness and warning system (TAWS).

image: © Pilatus Aircraft Ltd | PC-12 Glass cockpit

The check pilot looks outside (there is no standby instrument on the right side of the cockpit), sees a faint but visible horizon in the moonlight and says ‘attitude!’ causing the pilot to focus to the standby instrument, monitoring its old-style flat horizon and its speed and altitude tapes. It shows the aircraft climbing, but nose-high.

Airspeed, which had reduced to 101 knots increases to the planned 110 knots, and at about 850 feet the synthetic vision returns to normal and the rest of the flight is entirely placid, at least as far as the recording equipment is concerned. The crew report the incident.

The Australian Transport Safety Bureau (ATSB) investigation determined that both antennas associated with the radalt system (one for transmit and one for receive) had failed, after more than 9000 hours in service. ‘The antennas did not have a life limit, but were required to be replaced “on condition”, which essentially meant that the antennas remained in service until they failed,’ the ATSB said.

The pilots were both experienced, able to put their incident into the context of thousands of hours, and reported in detail to the ATSB. They told the investigator this experience was different to previous instrument failures, which they had both experienced. It was harder to compensate for, paradoxically, because in normal use synthetic vision worked very well.

The ATSB report stated, ‘Both pilots commented that they had previously experienced failure of primary flight instruments at low level and at night in different aircraft (without synthetic vision systems). They had been able to disregard the erroneous or failed instruments and reference the standby instruments to maintain control of the aircraft and situational awareness. However, the prominence of the synthetic vision display is such that it is difficult to ignore erroneous information and locate valid information. Additionally, the pilot flying reported feeling a level motion sickness, probably associated with the combined effects of the prominent synthetic vision display and conflicting vestibular sensory information.’

The maker of the display, Honeywell, issued Pilot Advisory Letter PAL-APEX-01 to all pilots, chief pilots and flight operations managers on 11 August 2016. It advised pilots that synthetic vision was for situational awareness, and should not be used for indicating attitude or altitude in lieu of the primary flight display indications for pitch, roll, yaw or altitude.

CASA human factors specialist, Reuben Delamore, says further instructions and admonishments aimed at pilots are at best only part of the solution. They do not address underlying issues of technology, psychology and design.

‘We’ve got all this fabulous technology on flight decks, but with hindsight, as an industry, we’re not necessarily considering what could happen if technology doesn’t behave as expected. All we have is a general principle—technologies that work in new ways fail in new ways,’ he says.

Delamore notes a long standing design issue in the form of the cautionary placard on the aircraft’s panel. ‘The synthetic vision system had a little placard below its screen that said words to the effect of “don’t use this as your primary means of information,”’ he says.

The placard was there because as a non-redundant system without self-monitoring, synthetic vision can only be used as an aid to situational awareness.

This is at odds with the fact that vision is our primary sense, Delamore says. ‘When a visual representation is provided that appears accurate, of course we will attend to that information to the point where it will become relied upon, despite the designers’ placard.’

image: © Pilatus Aircraft Ltd | Royal Flying Doctors Service

The placard was an example of trying to solve a system problem, in this case the unknown (although relatively good) reliability of the synthetic vision system, by placing the onus on the user.

‘Signage is the least useful control,’ Delamore says. ‘It’s a stopgap, and often a sign of poor design. The most common examples are doors that have to have push and pull written on them, to show you what to do.’

Delamore notes that synthetic vision systems are available at minimal cost as software for tablet computers and that the technology is becoming popular in sport aviation.

‘Performance is considered, but speaking to users in sport aviation I have noticed a presumption that “the manufacturer’s considered that so it will be OK.” The other issue regarding tablet-based systems is the potential for users to “get buried in the menus”,’ he says.

The marketing-driven incentive for display manufacturers to offer more options and features is not necessarily in the interests of safety, Delamore says. ‘This is often a trap, as it then requires a level of understanding to navigate the menus that may not be very clear to the user or takes time in using the system to learn.’

The potential issues with synthetic vision were foreseen early. In 2002, researchers Micah Endsley and William Jones listed several potential pitfalls:

  • Difficulty in correctly perceiving the vertical flight profile in a 3D display
  • The compelling influence of graphical 3D displays may overcome digitally presented instrument data, leaving the pilot open to spatial disorientation
  • The potential to believe no traffic (or other obstacles) is present if not displayed, when in fact this ‘false world’ could result from a database or sensor limitation.

They went on to say, ‘Although the veridical nature of the synthetic vision’s system display is its strong point—integrated information presented in a very natural manner—this also is its Achilles’ heel. It is a far more compelling display than any previously and more likely to suck pilots into any false or ambiguous information it presents.’

A NASA study from 2009, the year in which the first certified synthetic vision system was installed on a Gulfstream business jet said, ‘Will realistic terrain cause the pilot to focus on the artificial display to the exclusion of the outside world and backup instruments? Will synthetic vision displays be compelling and induce complacency?’

Delamore notes there was, thankfully, no complacency in the Meekathara incident, but the pilots said themselves that things could have been different if they had been tired, rather than on the first flight after a good rest.

Further information:

Human Factors Issues In Synthetic Vision Displays: Government, Academic, Military, and Industry Perspectives.

Synthetic vision display error involving Pilatus PC-12 VH-OWA, Meekatharra Airport, Western Australia, 18 June 2016. Australian Transport Safety Bureau.

Prinzel, L.J., and Kramer, L. J. (2009). Synthetic Vision Systems. Research and Technology Directorate, Crew Systems and Operations Branch (D-318), Mail Stop 152, NASA Langley Research Center, Hampton, VA 23681, USA.
