1 August – 22 September 2014

2875

Distributor gear faulty. SDR 510019597
Magneto distributor gear finger loose. P/No: 4373. TSN: 46 hours.

Eastern Aero Marine T6R0102A103 life raft incorrect part. SDR 510019765
Life raft marked with incorrect part number. Raft is marked as PNo RO101A103 when the correct part number should be PNo RO102A103. Survival aid fitted to the raft also incorrect or non-genuine parts. P/No: Various.

Magneto faulty. SDR 510019814
LH magneto faulty. Timing was found to be 10 degrees advanced. P/No: 4373. TSN: 99 hours.

Magneto faulty. SDR 510019815
LH magneto faulty. Timing was found to be 8 degrees advanced. P/No: 4373. TSN: 99 hours.

Magneto FOD. SDR 510019622
Newly fitted magneto made a ‘clunk’ noise during installation. Investigation found a loose washer inside the magneto cap. P/No: 6393. TSN: 1503 hours.

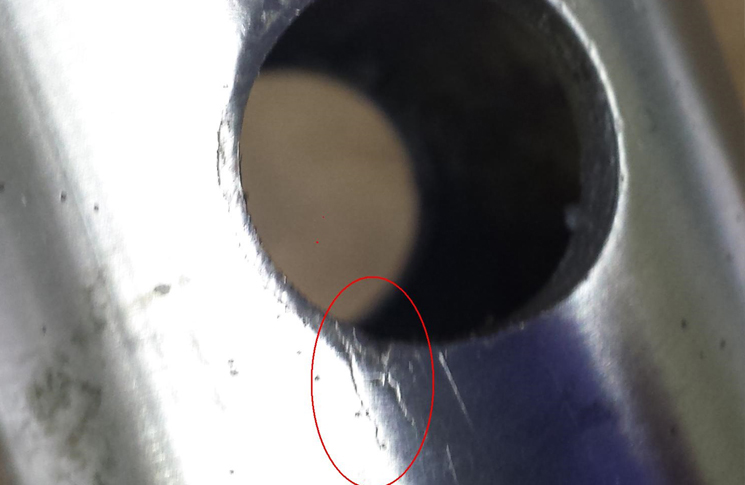

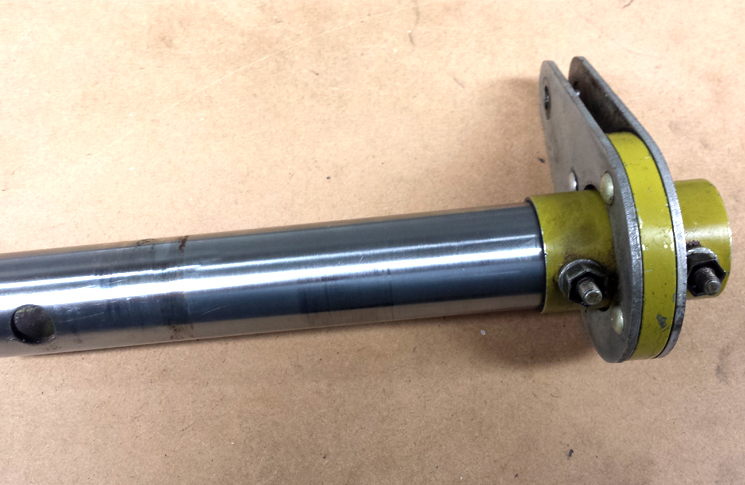

510019636-2_adj 510019636_adjShaft cracked. SDR 510019636 (photos above)
Nose landing gear bungee shaft cracked. P/No: 7500691.

Zodiac Aerospace stud corroded. SDR 510019818
Replacement stud for passenger seat installation suspect incorrect part. Stud was corroded with nil cadmium plating present. P/No: 115022001.
