Investigator calls for take-off acceleration monitoring

1434

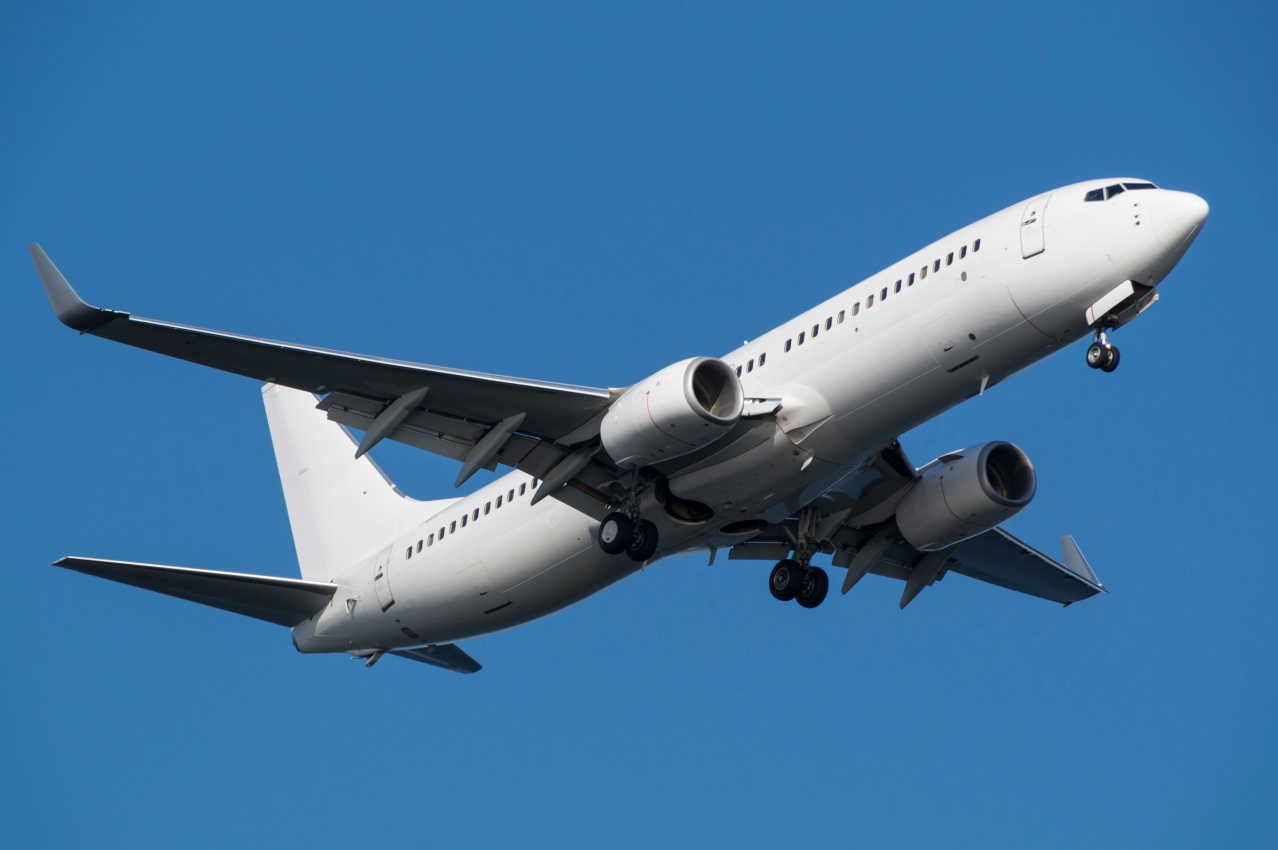

Boeing 737-800

The British Air Accidents Investigation Branch (AAIB) has called for a simple data-driven system to detect if aircraft are accelerating normally on take-off, following its investigation into a serious incident involving a Boeing 737.

In 2017, a Boeing 737-800 struck a 35 cm high runway marker at Belfast International (Aldergrove) Airport, in Northern Ireland, after the wrong temperature was entered into a flight management computer.

The report said failure to notice the initial error ‘was predictable and within normal human performance … Once the take-off was started, acceleration cues would be unlikely to alert a normal crew to the problem.’

The report listed 33 investigated cases (including Emirates flight 407 at Melbourne airport in 2009) where undetected sluggish acceleration had led to safety incidents since 2004.

Take-off performance monitoring systems (TOPMS) had been under development but were complex and expensive. The AAIB recommended swiftly adopting a simpler, less comprehensive take-off acceleration monitoring system (TAMS).

‘Previous work on the subject generally focussed on TOPMS, which are often predictive in nature and which also deal with the continued or rejected take-off cases, the latter requiring runway condition and other environmental factors to be considered,’ the AAIB said.

‘A TAMS offers a simpler approach which just confirms if the aircraft is accelerating at approximately the correct rate. Such a system would not necessarily detect all types of errors that lead to abnormal aircraft acceleration,’ the AAIB said, but ‘a TAMS would add a barrier independent of human intervention which would detect abnormally low acceleration and alert the crew.’

TAMS is software that uses flight data to compare acceleration on take-off with a database of take-offs for the aircraft type, (73,669 departures, for the Boeing 737-800) covering combinations of outside temperature, runway altitude and weight. The investigation used a TAMS in simulator trials reproducing the incident flight and it detected the sluggish acceleration and warned the crew with an aural alert.

Noting that TAMS software could be incorporated in existing terrain awareness and warning systems the report said, ‘many aircraft already in commercial operation could, potentially, be retrofitted with a TAWS system offering TAMS functionality’.

The Dutch Safety Board made a similar recommendation in March, after investigating several serious incidents.
